ROV/AUV Supply

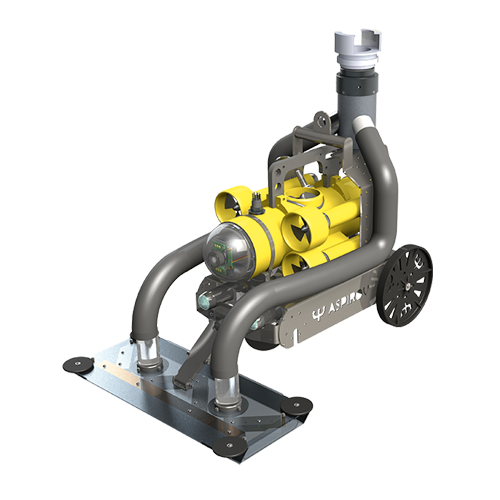

A lightweight and ultra portable tank inspection and inspection and cleaning system capable of cleaning 5m²/min (280m²/hr). The 12Kg unit can process 60m³/h at 20m depth whilst offering live video monitoring with the forward and rear facing cameras.

Download Brochure

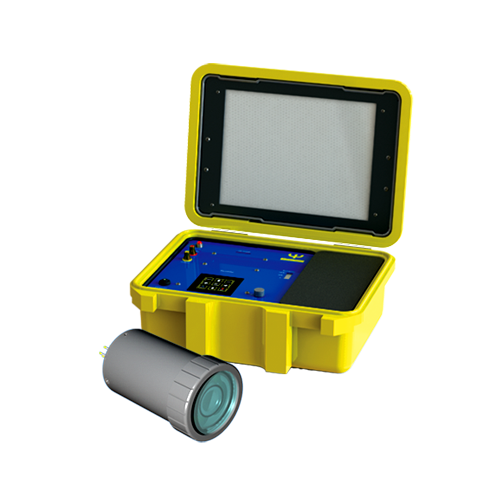

A towed high resolution underwater camera system backed with 500 lumens LED lighting can be pole mounted to allow 4 hours continuous recording back to 12’’ LCD or to SIM. The 6Kg units are rated for 100m or 300m water depth.

Fitted with a high resolution color camera, 700TVL, sensitivity 0.01 lux, (night mode) and integrated LED lighting (500 lumens), the UVS100RL and UVS300RL video systems allow performing any kind of underwater inspection whether directly from the surface with a telescopic pole, with a diver (wrist or hat mounted) or from any fixed or moving support.

The waterproof display and control console has a 12” LCD screen and a digital recorder/reader (SD card). The embedded batteries allow a 4h autonomy (8h in option). The console and the camera are connected through an umbilical for power supply and video signal.

Audio communication, text edition and depth meter functions are available on demand.

Camera features
Max. depth. : UVS100RL : 100m - UVS300RL : 300m
Dimensions : diam. 66mm, length110mm
Weight : Acetal version 280g, Stainless steel version 820g
Lighting : integrated LED, 500 lumens with intensity control
Resolution : 700 TVL
Sensitivity : 0,01 lux

Console features
12" LCD screen
Batteries : NiMH accumulators (4h autonomy, 8h in option)
Recorder : Recorder/reader on SD card
Outputs : RCA connector for video display on external screen
Input : RCA for microphone
Weight : 6kg
Dimensions : 36cm x 29cm x 16cm
Camera fitting in the console

Equipment
Umbilical : 100m standard

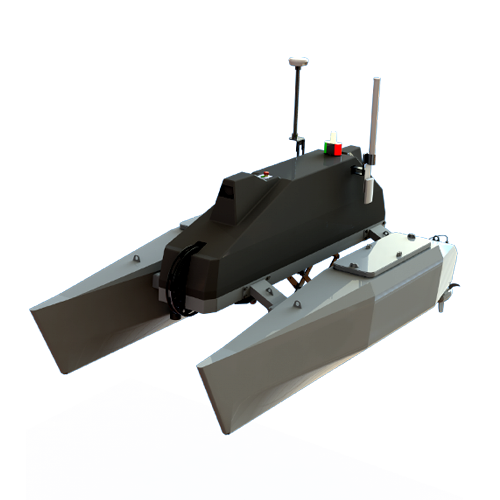

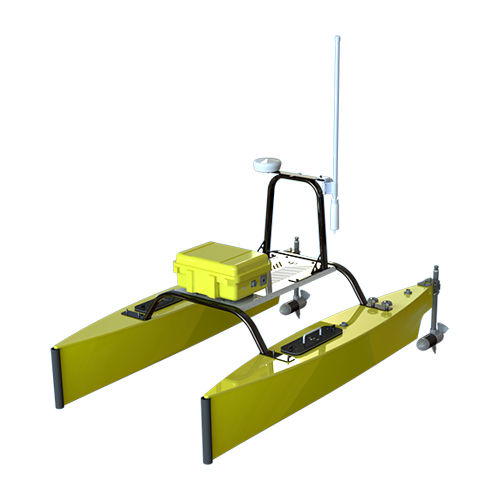

A tele-operated or autonomous 50Kg catamaran with a 15Kg payload can maintain continuous live bathymetry coverage at 4 knots for 4 hours up to 1000m range in wave heights of 30cm. Options include single beam, multibeam, side scan and imaging sonars and many other sensors running under Windows. Easily commissioned by a single operator.

Download Brochure

A drone catamaran with a 80Kg payload, can maintain continuous live bathymetry coverage at 5 knots for 12 hours for up to 5km range in wave heights of 1m. This unit has a winch system for automated deployment of towed sensors or mini-ROVs and a hull retractable sensor frame.

Download Brochure

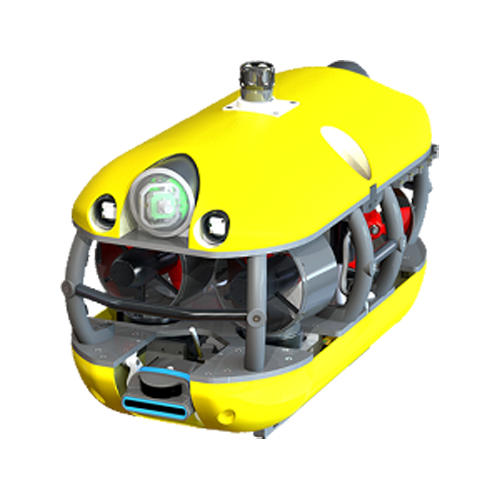

An 40Kg azimuthal control inspection class ROV capable of operating at 5 knots in depths of 500m. Options for this system include manipulator, samplers, thickness gauges, laser guides and imaging sonar.

Download Brochure

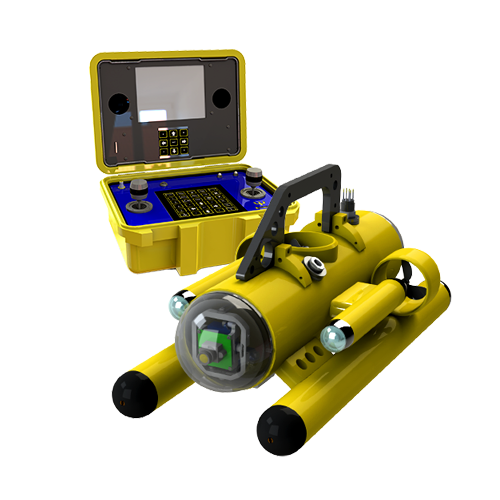

A 7Kg mini-ROV fitted with high resolution colour video cameras and LED lighting, than can offer autonomous operations in depths of 150m for up to 4 hours (or continuous with 220VAC interface) at 2 knots. The ROV, console, umbilical and transformer compacts into one transport case weighing 32Kg. An ancillary plug allows various accessories including gauges, sonars and manipulators to be mounted.

Download Brochure

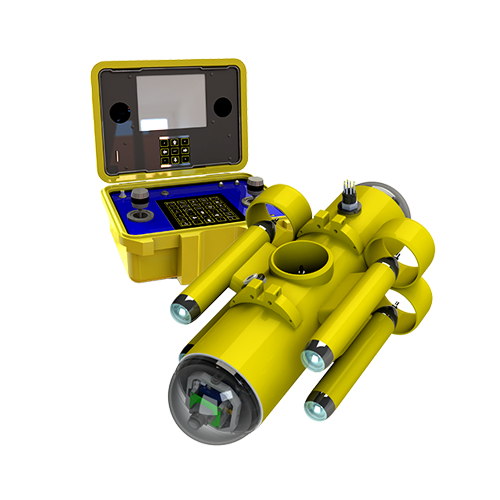

A 5Kg mini-ROV fitted with high resolution colour video cameras and LED lighting, than can offer autonomous operations in depths of 150m for at 3 knots for excursions up to 500m. The five thrusters support options including acoustic cameras, CP probes, thickness gauges, sampling and a manipulator.

Download Brochure
